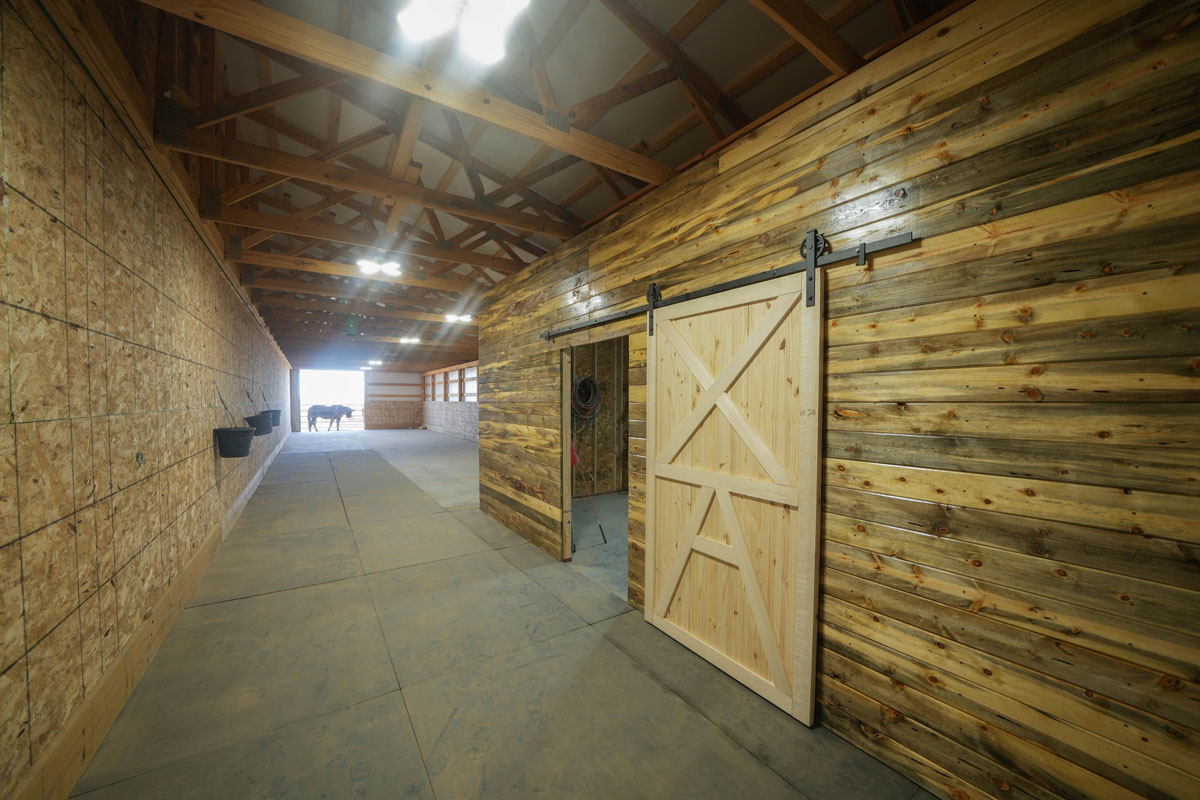

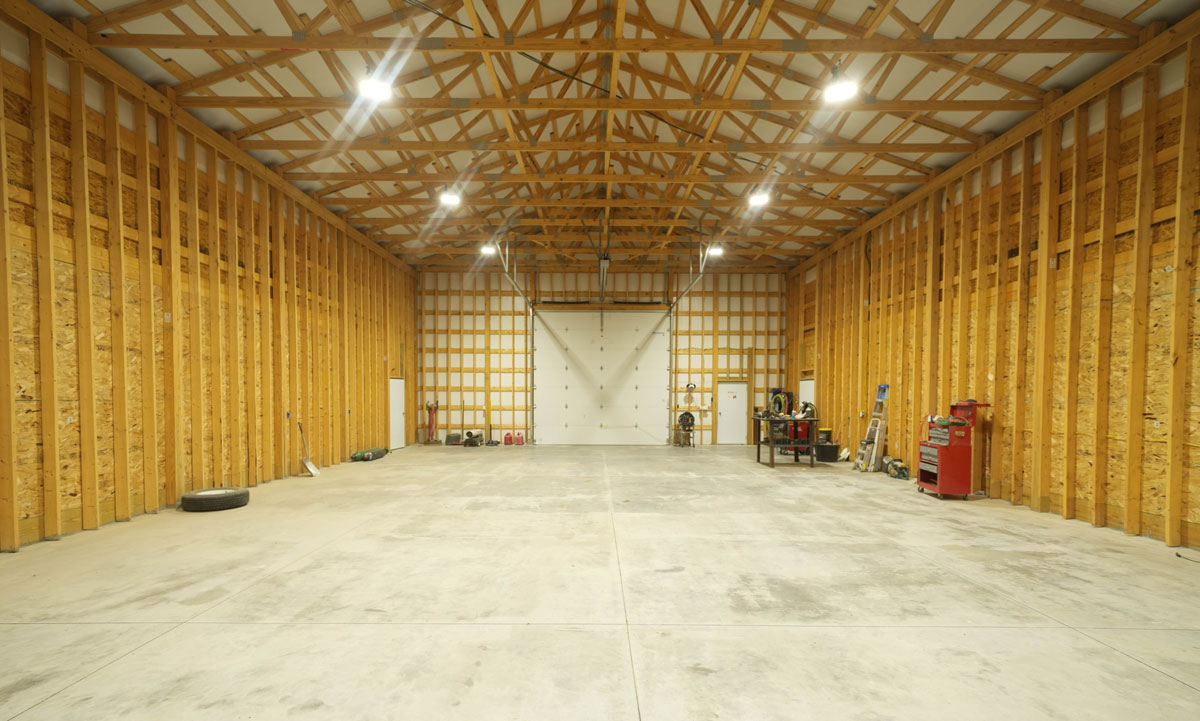

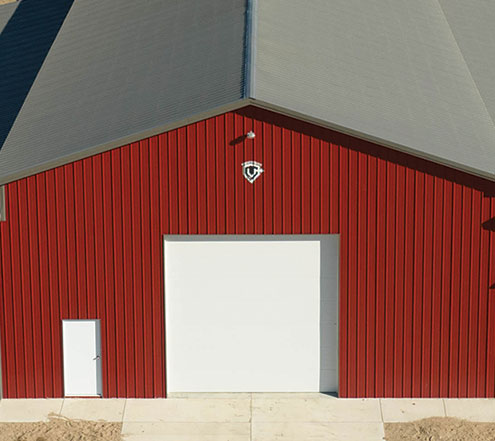

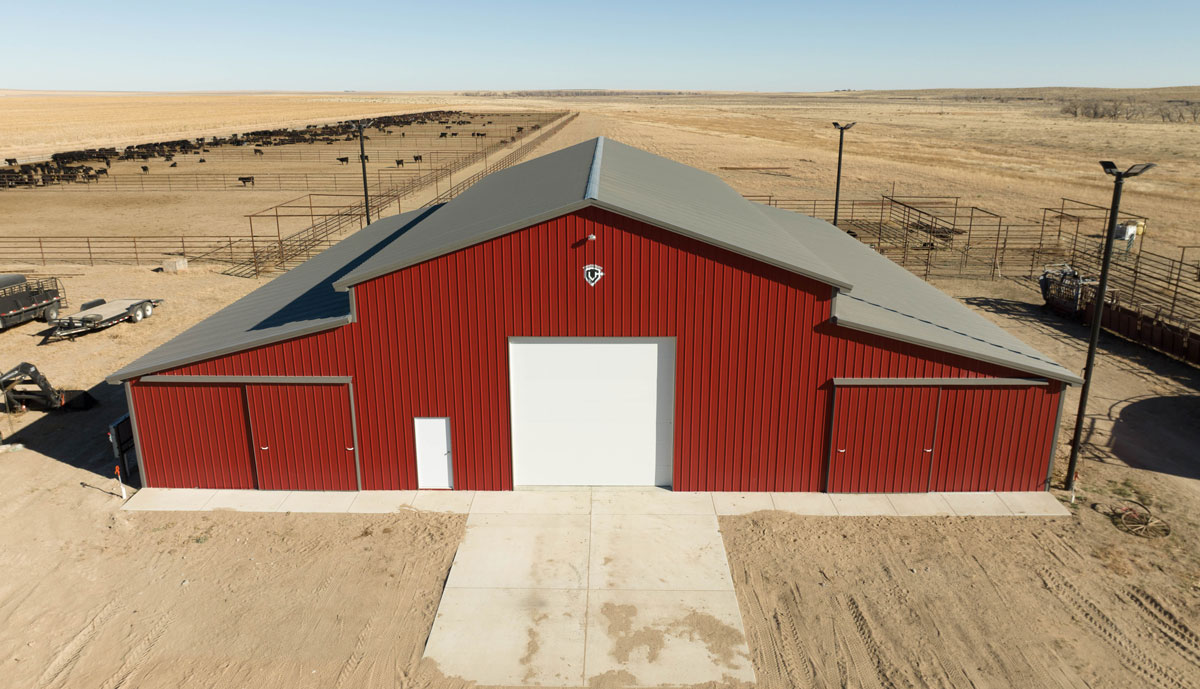

This dual-purpose post-frame building in Kansas was constructed for a customer who raises cattle and also keeps horses. The 40’x88’x18’ building also includes two 20’ lean-to’s on each side and is customized for both equine stalls and equine storage as well as cattle handling and calving. Vap Construction also did the concrete, overhead doors, insulation, and some other finish work.
Details:
Location:
Kansas
Type:
Post-frame
Size:
40’x88’x18’ with 20’ lean-to’s
Roof Pitch:
4/12
Foundation:
4’ post holes with one bag of Sakrete in each hole with uplift cleats
Trusses:
Martin Metal 40’ pre-engineered with 30 lb. snow load and 115 mph wind load on 4’ centers
Roof Panels:
29ga Loc Plus Metal Charcoal panels
Wall Panels:
29ga Loc Plus Metal Dark Red panels
Fasteners:
Flat-Lok screws and Tree Island nails
Overhead Doors:
14’x14’ Clopay insulated commercial sectional door, microgrooved ribbed steel, with commercial LiftMaster operator
Walk Doors:
Plyco 3’x6’8”x2” white insulated upgraded steel
Posts:
Martin Metal 4-ply 2”x6” nail and glulam with finger joints
Ventilation:
Martin Metal vented soffit and vented closure strips
Insulation:
Martin Metal reflective insulation in the roof, walls, and gables
